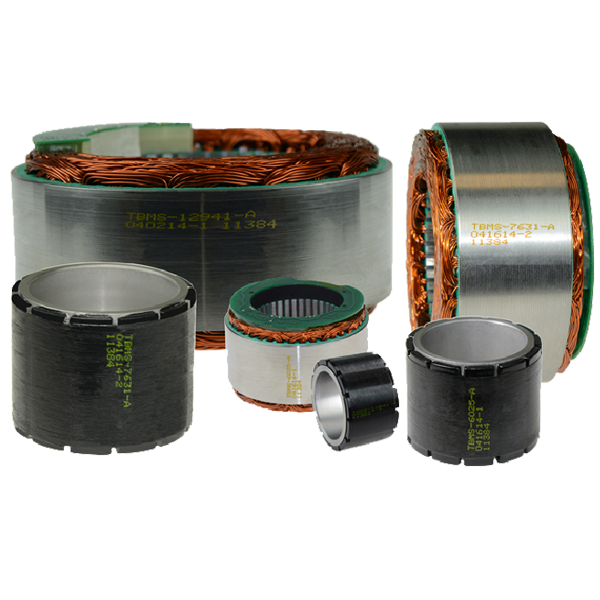

规格
| 机架尺寸 | 外直径 (in) | 孔径 (in) | 连续失速转矩 | 峰值失速转矩 | 标准磁钢长度 定子尺寸“A” | 额定总线电压 (VDC) | 最大失速 Tc Nm （oz-in 或 lb-ft） | 最大 Tp Nm （oz-in 或 lb-ft） | 最大额定 N |
|---|---|---|---|---|---|---|---|---|---|
| TBM(s)60 | 60.35mm (2.37 in) | 28.70mm (1.13 in) | .41 - 1.16 Nm | 1.37 - 4.53 Nm | 12.70 mm (0.500 in) 25.40 mm (1.000 in) 50.80 mm (2.000 in) | 48 VDC | 1.15 Nm (163 oz-in) | 5.00 Nm (708 oz-in) | 4300 RPM |
| TBM(s)76 | 75.97mm (2.99 in) | 36.07mm (1.42 in) | .99 - 2.39 Nm | 2.86 - 6.89 Nm | 15.24 mm (0.600 in) 30.73 mm (1.210 in) 46.23 mm (1.920 in) | 48 VDC | 2.33 Nm (330 oz-in) | 6.74 Nm (955 oz-in) | 4025 RPM |
| TBM(s)129 | 128.93mm (5.08 in) | 55.88mm (2.20 in) | 3.12 - 10.3 Nm | 8.07 - 39.4 Nm | 13.33 mm (0.525 in) 41.28 mm (1.625 in) 54.61 mm (2.150 in) | 100 VDC | 10.3 Nm (7.60 lb-ft) | 36.2 Nm (26.7 lb-ft) | 2700 RPM |
下载中心
| 标题 | 语言 | 发布日期 | 共享 URL |
|---|---|---|---|
| Kollmorgen Full-line Catalog | English(英语) | 共享 URL查看 | |
| Kollmorgen Catalogo Automazione e Motion Control IT | Italian | 共享 URL查看 | |
| Kollmorgen Automation Solutions and Product Catalog EMEA | English(英语) | 共享 URL查看 | |
| KOLLMORGEN Motion Control- und Antriebslösungen Katalog CH | German(德语) | 共享 URL查看 | |
| Kollmorgen otomasyon ve hareket kontrol çözümleri kataloğu TR | Turkish | 共享 URL查看 | |
| Kollmorgen Robotic Solutions Brochure EMEA | English(英语) | 共享 URL查看 | |
| Kollmorgen TBM Frameless Motor Selection Guide | English(英语) | 共享 URL查看 | |
| Robotertechnik Broschüre | German(德语) | 共享 URL查看 | |
| Robotic Solutions Brochure | English(英语) | 共享 URL查看 | |
| Robotik Motor Çözümleri | Turkish | 共享 URL查看 | |
| Servomotori per Robotica Brochure | Italian | 共享 URL查看 | |
| 无框电机选择指南 | Chinese, Simplified(中文) | 共享 URL查看 | |
| 无框电机选择指南 | Chinese, Simplified(中文) | 共享 URL查看 | |
| 科尔摩根 TBM(S)无框力矩电机选型指南 | Chinese, Simplified(中文) | 共享 URL查看 | |
| 科尔摩根运动控制及伺服系统解决方案 | Chinese, Simplified(中文) | 共享 URL查看 |
| 文件标题 | 文件语言 | 发布日期 | 共享 URL |
|---|---|---|---|
| CE Certification - Technical Notice for TBM and TBMS | English | |
共享 URL /sites/default/files/2023-07/CE%20Technical%20Notice%20-%20TBM.pdf |
| CEL China Efficiency Labelling for Servo and Stepper Motors | English | |
共享 URL /sites/default/files/public_downloads/CEL%20Technical%20Notice%20on%20Efficiency%20for%20Servo%20and%20Stepper%20Motors.pdf |
| China Compulsory Product Certification (CCC Technical Notice) | English | |
共享 URL /sites/default/files/2024-01/CCC%20Technical%20Notice%20on%20Scope%20of%20Kollmorgen%20Products.pdf |
| Kollmorgen CE Technical Notice - Servo and Stepper Motors Efficiency | English | |
共享 URL /sites/default/files/public_downloads/Kollmorgen%20CE%20Technical%20Notice%20-%20Servo%20and%20Stepper%20Motors%20Efficiency.pdf |
| TBM EU RoHS Declaration (RoHS10) | English | |
共享 URL /sites/default/files/public_downloads/RoHS10_TBM%20Standard.pdf |
| TBM REACH SVHC Certificate of Compliance | English | |
共享 URL /sites/default/files/public_downloads/REACH_R211N_TBM%20Standard.pdf |
| TBM及TBMS CE认证 | English | |
共享 URL /sites/default/files/2023-07/TBM%20%E5%8F%8ATBMS%20CE%E8%AE%A4%E8%AF%81_1.pdf |
该系统中的3D 模型可作为参考信息为您的设计提供指导。如需获得设计工作关键点的最新、最准确的信息，请您进一步咨询科尔摩根运动控制专家。
| 文件标题 | 文件语言 | 发布日期 | 共享 URL |
|---|---|---|---|
| 2D/3D Product Model | Chinese, Simplified | |
共享 URL https://www.kollmorgen.cn/zh-cn/service-and-support/technical/%E6%8A%80%E6%9C%AF%E6%94%AF%E6%8C%81/%E9%A2%84%E8%A7%88%E5%92%8C%E4%B8%8B%E8%BD%BD2D/3D%E6%A8%A1%E5%9E%8B |
| TBM-129XX-X00 Direct Drive Frameless 2D Drawing | English | |
共享 URL /sites/default/files/public_downloads/TBM-129.pdf |
| TBM-60XX-X00 Direct Drive Frameless 2D Drawing | English | |
共享 URL /sites/default/files/public_downloads/TBM-60.pdf |
| TBM-76XX-X00 Direct Drive Frameless 2D Drawing | English | |
共享 URL /sites/default/files/public_downloads/TBM-76.pdf |
| TBMS-129XX-X00 Direct Drive Frameless 2D Drawing | English | |
共享 URL /sites/default/files/public_downloads/TBMS-129.pdf |
| TBMS-60XX-X00 Direct Drive Frameless 2D Drawing | English | |
共享 URL /sites/default/files/public_downloads/TBMS-60.pdf |
| TBMS-76XX-X00 Direct Drive Frameless 2D Drawing | English | |
共享 URL /sites/default/files/public_downloads/TBMS-76_0.pdf |
