S200 伺服驱动器

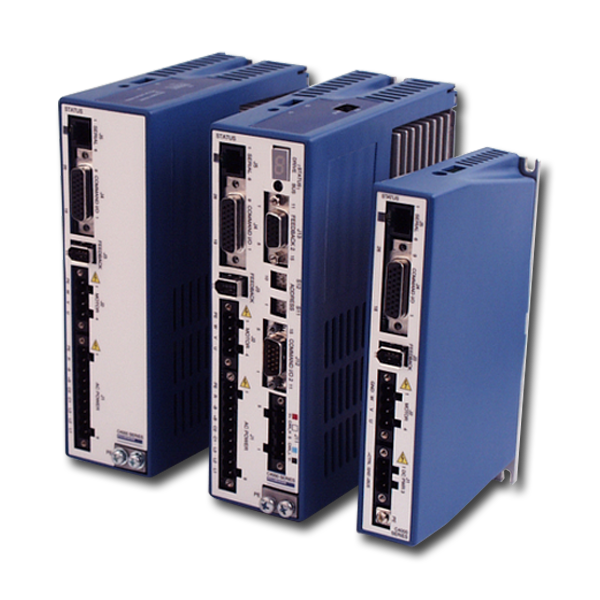

科尔摩根 S200 伺服启动器是最早采用800Hz速度环带宽的全数字工业驱动器。如果您正在寻找一款体积小、高性能的伺服驱动器，科尔摩根的S200驱动器将伺服运动控制技术的优点提升到了一个新的机械设计水平。该驱动器提供了出色的系统产能和简化的调谐方式。高分辨率（24位）反馈和高性能（3-5 千赫）电流环带宽提供了平滑的运动和快速的反应，优化了机器的性能和产能。通过在大多数应用中消除了驱动器参数设置和伺服环调整的需要，配备了电子电机铭牌的智能反馈系统允许即插即用调试。科尔摩根S200 驱动器标配了扭矩和转速控制台、电子齿轮、高达18位的模拟基准输入，以及一个编码器等效输出。S200产品系列包括了用于支持分度或基于SynQnet的可编程运动控制器的选购件。
产品全球有售
特点
- 可用于交流（120/240VAC）和直流（20-90 VDC）运转，额定电流从持续的1.5A至48A有效值峰值 - 带来的好处是：一个系列的驱动器就可以满足您一台机器或者整批机器的应用需求。
- 紧凑的机体 - 允许使用更小的机柜，或者安装在使用点附近。
- 满足UL 508 C、CE、EN50178、EN61800-C和Semi F47 标准
- 分立的“Keep Alive”电源输入——允许从紧急停止状态下迅速恢复。
- 光学隔离的输入/输出、自锁连接器以及全方位的故障防护，更是提高了机器寿命和抗故障损坏能力。
- 高性能系统 - 提高机器产能并延长机器寿命。
- 易于使用的GUI（图形用户接口） - 缩短工程与技术支持时间。
- 缩减的总成本
- 易于使用
规格
Technical Data
| Model | |||||
|---|---|---|---|---|---|
| Rated data | DIM | 20330 | 20630 | 20260 | 20360 |
| Rated supply voltage | V | 20 ... 90 VDC | 0 ... 264 VAC | ||
| Control logic, supply voltage | V | 10 ... 90 VDC | 85 ... 265 VAC | ||
| Rated output current (RMS value, ± 3 %) | A | 3 | 6 | 1.5 | 3 |
| Peak output current (± 3 %) | A | 9 | 18 | 4.5 | 9 |
| Peak time | s | 3 | 3 | 3 | 3 |
| Current loop Bandwidth max. | kHz | 5 | 5 | 3 | 3 |
| Velocity loop Bandwidth max. | Hz | 800 | |||
| Update rate | MHz | 1.25 | |||
Dimensions
| DC | DC & option | AC | |
|---|---|---|---|
| Height | 152.4 mm | 152.4 mm | 175 mm |
| Width | 28.7 mm | 48.3 mm | 54.8 mm |
| Depth without connectors | 101 mm | 101 mm | 132 mm |
| Depth with connectors | ~130 mm | ~130 mm | ~180 mm |
