4 通道数字输出终端,安全
带数字输出的安全输出端子,用于连接最大电流为 0.5 A (24 VDC) 的设备。该端子具有 4 个故障保护输出。该端子符合 IEC 61508:2010 SIL 3、DIN EN ISO 13849-1:2015 (Cat 4, PL e)、UL508、UL1998 和 UL991 标准的要求。
![Global Global](/themes/koll_forest/images/avail_global.webp)

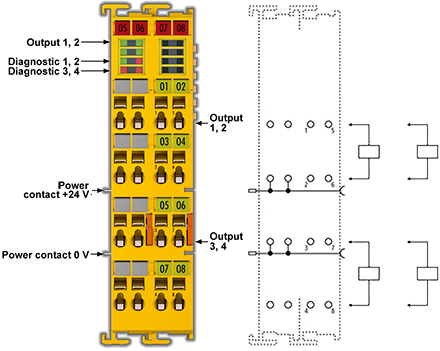

规格
有关安全等级 I/O 终端的应用和使用的重要信息,请参考 KAS 网站帮助。
技术数据 | AKT2G-SDO-004-000 |
---|---|
数出数量 | 4 |
状态显示 |
4(每个输出配一个绿色指示灯) |
错误反应时间 |
≤ 监视次数 |
每通道输出电流 |
最大 500 mA,最小 20 mA,有效设置电流测量参数的情况下 |
致动器 |
选择执行器时,请确保 AKT2G-SDO-004-000 测试脉冲不会导致执行器切换。 |
Cable length between actuator and terminal |
unshielded max. 100 m shielded max. 100 m |
Wire cross section |
min. 0.75 mm2 |
Input process image |
6 bytes |
Output process image |
6 bytes |
AKT2G-SDO-004-000 supply voltage (PELV) |
24 VDC (–15%/+20%) |
Current consumption via E-bus |
approx. 221 mA |
Power dissipation of the terminal |
typically 2 W |
Electrical isolation (between the channels) |
no |
Electrical isolation (between the channels and the E-bus) |
yes |
Insulation voltage (between the channels and the E-bus, under common operating conditions) |
insulation tested with 500 VDC |
Dimensions (W x H x D) |
24mm x 100mm x 68mm |
Weight |
approx. 100 g |
Permissible ambient temperature (operation) up to SW 03 |
0°C to +55°C (see note in Installation position and minimum distances) |
Permissible ambient temperature (operation) from SW 04 (week 02/2014) |
-25°C to +55 °C (see note in Installation position and minimum distances) |
Permissible ambient temperature (transport/storage) |
-40°C to +70°C |
Permissible air humidity |
5% to 95%, non-condensing |
Permissible air pressure (operation/storage/transport) |
750 hPa to 1100 hPa (this corresponds to a height of approx. -690 m to 2450 m over sea level assuming an international standard atmosphere) |
Climate category according to EN 60721-3-3 |
3K3 (the deviation from 3K3 is possible only with optimal environmental conditions and also applies only to the technical data which are specified differently in this documentation) |
Permissible level of contamination according to EN 60664-1 |
level of contamination 2 (comply with the section Safety I/O Maintenance) |
Impermissible operating conditions |
safety terminals must not be used under the following operating conditions:
|
电磁抗扰度/发射 |
符合 EN 61000-6-2 / EN 61000-6-4 标准 |
抗振动/抗冲击性 |
符合 EN 60068-2-6 / EN 60068-2-27 标准 |
冲击 |
15 g,所有三个轴的脉冲持续时间为 11 毫秒 |
防护等级 |
IP20 |
容许工作温度 |
在控制柜或接线盒中,最低防护等级为 IP54,符合 IEC 60529 标准 |
容许安装位置 |
|
认证 |
CE、cULus |
