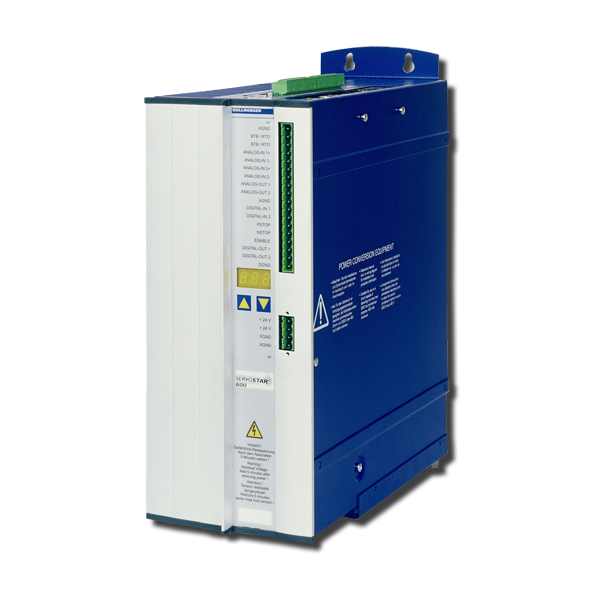

S600 伺服驱动器
S600 系列数字化伺服驱动器可在 230V 至 480V 交流线路上直接应用，可输出 1.5A 至 20A 均方根/相的连续电流。 智能定位功能包括运动轮廓控制、定位控制、限制振动控制、菊链任务、绝对和相对任务，以及多种类型的hui回零方式。 该系列驱动器仅适用于已经在使用的客户。 对于新应用，我们建议使用 S700 系列。
产品全球有售
特点
- CE，UL，cUL认证
- 直接电网运行，230V ~ 480V AC
- 输出电流 1.5A 到 20A
- 制动
- 集成再生电路（高达 20A）
- 配有集成电源滤波器（多达 20A），所有屏蔽直接连接至放大器
- 在住宅区使用伺服放大器时，本产品可能造成高频干扰。 用户必须进行额外的过滤器。
- 高达 20A，适用于 300mm 开关柜
- 使用安装软件通过 PC 进行操作
- 用于步进控制器、主-从动运行、电子齿轮的集成接口
- 集成位置控制器，配有用于存储 255 个运动任务的存储器 智能定位：
- 运动轮廓控制
- 定位控制
- 限制振动控制
- 多个运动任务的连接控制
- 绝对和相对运动控制
- 多种归航模式
- 编码器仿真可选择增量式或绝对值式
- 多种反馈系统：
- 旋转变压器，多达 36 极
- 通信编码器
- 带 Hall 的增量或正弦编码器
- 带 EnDat/HIPERFACE/BISS 的正弦编码器
- 无数据磁道的正弦编码器
- 增量编码器 A正交B
规格
技术数据
| 601 | 603 | 606 | 610 | 614 | 620 | ||
|---|---|---|---|---|---|---|---|
| 额定供电电压 | V~ | 3 x 208V-10%...480V+10%，60Hz 3 x 230V-10%...480V+10%，50Hz |
|||||
| S1 操作的额定安装电压 | kVA | 1 | 2 | 4 | 7 | 10 | 14 |
| 额定直流连接电压 | V= | 260...675 | |||||
| 额定输出电流（均方根值 ±3%） | 电流均方根 | 1,5 | 3 | 6 | 10 | 14 | 20 |
| 输出电流峰值（最大 5s，±3%） | 电流均方根 | 3 | 6 | 12 | 20 | 28 | 40 |
| 持续电源再生电路 (RBint) | W | 80 | 80 | 200 | 200 | 200 | 200 |
| 最大持续电源再生电路 (RBext) | kW | 0,5 | 0,5 | 1,5 | 1,5 | 1,5 | 1,5 |
| 最大尖峰电源再生电路 (RBext) | kW | 21 | 21 | 21 | 21 | 21 | 21 |
尺寸适合 300/400mm 开关柜
| 601/603/606/610 | 614 | 620 | |
|---|---|---|---|
| 高度 | 275mm | 275mm | 275mm |
| 宽度 | 70mm | 100mm | 120mm |
| 深度 | 265mm | 265mm | 265mm |
| 深度 w/连接器 | 273mm | 273mm | 273mm |
下载中心
| 文件标题 | 文件语言 | 发布日期 | 共享 URL |
|---|---|---|---|
| Accessories for digital drive systems with S300/S400/S600/S700 | English | |
共享 URL /sites/default/files/public_downloads/Sxyz%20Accessories_Europe_en_2.pdf |
| CANopen PDO Setup Objects | English | |
共享 URL /sites/default/files/public_downloads/PDO_Objects.pdf |
| CANopen Protocol Quick Reference Guide | English | |
共享 URL /sites/default/files/public_downloads/S300_S600_S700_CAN%20Protocol%20Quick%20Reference.pdf |
| DeviceNet and HMS Simulator Instruction | English | |
共享 URL /sites/default/files/public_downloads/DeviceNet%20HMS%20Simulator_2009-1-5.pdf |
| PROFIBUS DP Fieldbus Interface for S300 / S400 / S600 / S700 | English | |
共享 URL /sites/default/files/public_downloads/s300s700_profibus_e_11-2022.pdf |
| S300 / S400 / S600 / S700 EtherCAT Feldbus Schnittstelle Handbuch | German | |
共享 URL /sites/default/files/public_downloads/srethercat_d_3.pdf |
| S300 / S400 / S600 / S700 EtherCAT Fieldbus Interface Manual | English | |
共享 URL /sites/default/files/public_downloads/srethercat_e_3.pdf |
| S300 / S400 / S600 / S700 Profibus Feldbus Schnittstelle Handbuch | German | |
共享 URL /sites/default/files/public_downloads/s300s700_profibus_d_11-2022.pdf |
| S300 / S600 / S700 2CAN Technical Description | English, French, German, Italian | |
共享 URL /sites/default/files/public_downloads/2can_defi.pdf |
| S300 / S600 / S700 DeviceNet Feldbus Schnittstelle Handbuch | German | |
共享 URL /sites/default/files/public_downloads/srdnet_d_1.pdf |
| S300 / S600 / S700 DeviceNet Fieldbus Interface Manual | English | |
共享 URL /sites/default/files/public_downloads/srdnet_e_1.pdf |
| S300 / S600 / S700 DeviceNet Technical Description | English, French, German, Italian | |
共享 URL /sites/default/files/public_downloads/devicenet_defi.pdf |
| S300 / S600 / S700 I/O Technical Description | English, French, German, Italian | |
共享 URL /sites/default/files/public_downloads/io_defi.pdf |
| S300 / S600 / S700 Profibus Technical Description | English, French, German, Italian | |
共享 URL /sites/default/files/public_downloads/profibus_defi.pdf |
| S300 / S600 / S700 SERCOS Technical Description | English, French, German | |
共享 URL /sites/default/files/public_downloads/sercos_defi.pdf |
| S300 / S600 / S700 SynqNet Technical Description | English, French, German | |
共享 URL /sites/default/files/public_downloads/synqnet_defi.pdf |
| S300 / S600 EtherCAT Technical Description | English, French, German, Italian | |
共享 URL /sites/default/files/public_downloads/ethercat_defi.pdf |
| S300-S400-S600-S700 Profibus Kommunikationsprofil Anleitung de | German | |
共享 URL /sites/default/files/public_downloads/Profibus%20Kommunikationsprofil%20Anleitung%20S300-S400-S600-S700.pdf |
| S400 / S600 ASCII Reference | English, German | |
共享 URL /sites/default/files/public_downloads/ascii_s400-s600.zip |
| S400 / S600 CAN-Bus Feldbus Schnittstelle | German | |
共享 URL /sites/default/files/public_downloads/s400600can_d_0.pdf |
| S400 / S600 CAN-Bus Fieldbus Interface Manual | English | |
共享 URL /sites/default/files/public_downloads/s400600can_e.pdf |
| S400 / S600 Drive Software Online Help | English | |
共享 URL /sites/default/files/public_downloads/drive_e_0.zip |
| S400 / S600 Help on line | Italian | |
共享 URL /sites/default/files/public_downloads/drive_i.zip |
| S400 / S600 L'Aide en ligne Drive | French | |
共享 URL /sites/default/files/public_downloads/drive_f_0.zip |
| S400 / S600 sercos II Feldbus Schnittstelle | German | |
共享 URL /sites/default/files/public_downloads/s400600sercos_d.pdf |
| S400 / S600 sercos II Fieldbus Interface Manual | English | |
共享 URL /sites/default/files/public_downloads/s400600sercos_e_0.pdf |
| S400-S600 Onlinehilfe | German | |
共享 URL /sites/default/files/public_downloads/drive_d_0.zip |
| S600 Manual (DE) | German | |
共享 URL /sites/default/files/public_downloads/sr601_d_3.pdf |
| S600 (640-670) Betriebsanleitung DE | German | |
共享 URL /sites/default/files/public_downloads/sr640_d_1.pdf |
| S600 (640-670) Manuale di installazione IT | Italian | |
共享 URL /sites/default/files/public_downloads/sr640_i_1.pdf |
| S600 (640-670) Manuel d’Instructions FR | French | |
共享 URL /sites/default/files/public_downloads/sr640_f_1.pdf |
| S600 (S640-670) Installation Manual EN | English | |
共享 URL /sites/default/files/public_downloads/sr640_e_0.pdf |
| S600 Interactive Tuning Guide | English | |
共享 URL /sites/default/files/public_downloads/S600_Interactive_Tuning_Guide.ppt |
| S600 Manual (EN) | English | |
共享 URL /sites/default/files/public_downloads/sr601_e_0.pdf |
| S600 Manual (FR) | French | |
共享 URL /sites/default/files/public_downloads/sr601_f_2.pdf |
| S600 Manual (IT) | Italian | |
共享 URL /sites/default/files/public_downloads/sr601_i_3.pdf |
| S600 Part Number Scheme | English | |
共享 URL /sites/default/files/public_downloads/s600_e.pdf |
| S600 Safety Notes DE EN ES FR IT | English, French, German, Italian, Spanish | |
共享 URL /sites/default/files/public_downloads/S600_Safety-Notes_0.pdf |
| S600 Typenschlüssel | English | |
共享 URL /sites/default/files/public_downloads/s600_d.pdf |
| S601 Betriebsanleitung DE | German | |
共享 URL /sites/default/files/public_downloads/sr601_d_0.pdf |
| S601 Manuale di installazione IT | Italian | |
共享 URL /sites/default/files/public_downloads/sr601_i.pdf |
| S601 Manuel d’Instructions FR | French | |
共享 URL /sites/default/files/public_downloads/sr601_f.pdf |
| S601-620 Manual del producto | Spanish | |
共享 URL /sites/default/files/public_downloads/sr601_s.pdf |
| S601_S620 Quick Start Guide EN | English | |
共享 URL /sites/default/files/public_downloads/S601_S620%20Quick%20Start%20Guide%20EN%20%28REV%2012-2014%29.pdf |
| S640 Betriebsanleitung DE | German | |
共享 URL /sites/default/files/public_downloads/sr640_d.pdf |
| S640 Installation Manual EN | English | |
共享 URL /sites/default/files/public_downloads/sr640_e.pdf |
| S640 Manuale di installazione IT | Italian | |
共享 URL /sites/default/files/public_downloads/sr640_i.pdf |
| S640 Manuel d’Instructions FR | French | |
共享 URL /sites/default/files/public_downloads/sr640_f.pdf |
| S640_S670 Quick Start Guide EN | English | |
共享 URL /sites/default/files/public_downloads/S640_S670%20Quick%20Start%20Guide%20EN%20%28REV%2012-2014%29.pdf |
| Zubehör für digitale Antriebe DE | German | |
共享 URL /sites/default/files/public_downloads/Digital%20Drive%20Systems%20Accessories%20Guide%20DE%20%28REV%2012-2014%29.pdf |
| Zubehör für digitale Antriebe mit S300, S400, S600, S700 DE | German | |
共享 URL /sites/default/files/public_downloads/Sxyz%20Accessories_Europe_de_1.pdf |
| Servostar 600 with Goldline BHMH en-US.pdf | English | |
共享 URL /sites/default/files/public_downloads/Servostar600_with_GoldLine_BHMH_2005.pdf |
| 标题 | 语言 | 发布日期 | 共享 URL |
|---|---|---|---|
| Kollmorgen Full-line Catalog | English(英语) | 共享 URL查看 | |
| Kollmorgen Catalogo Automazione e Motion Control IT | Italian | 共享 URL查看 | |
| Kollmorgen otomasyon ve hareket kontrol çözümleri kataloğu TR | Turkish | 共享 URL查看 | |
| Kollmorgen S600 Servo Drive Brochure UK | English(英语) | 共享 URL查看 | |
| Kollmorgen S600 Servoazionamento Opuscolo IT | Italian | 共享 URL查看 | |
| Kollmorgen S600 Servoverstärker Broschüre DE | German(德语) | 共享 URL查看 | |
| S300 S600 Catalog EN RevA | English(英语) | 共享 URL查看 |
